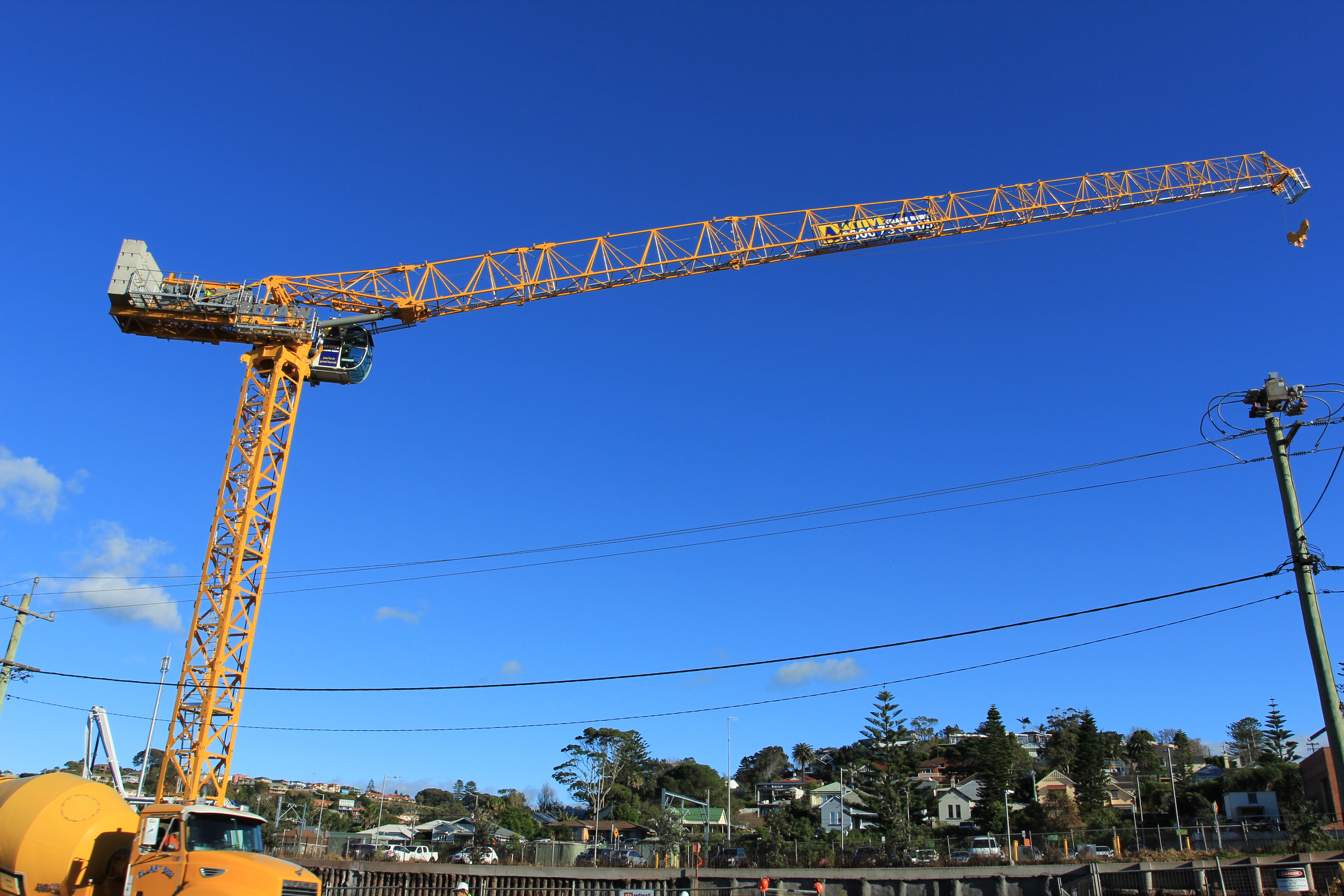

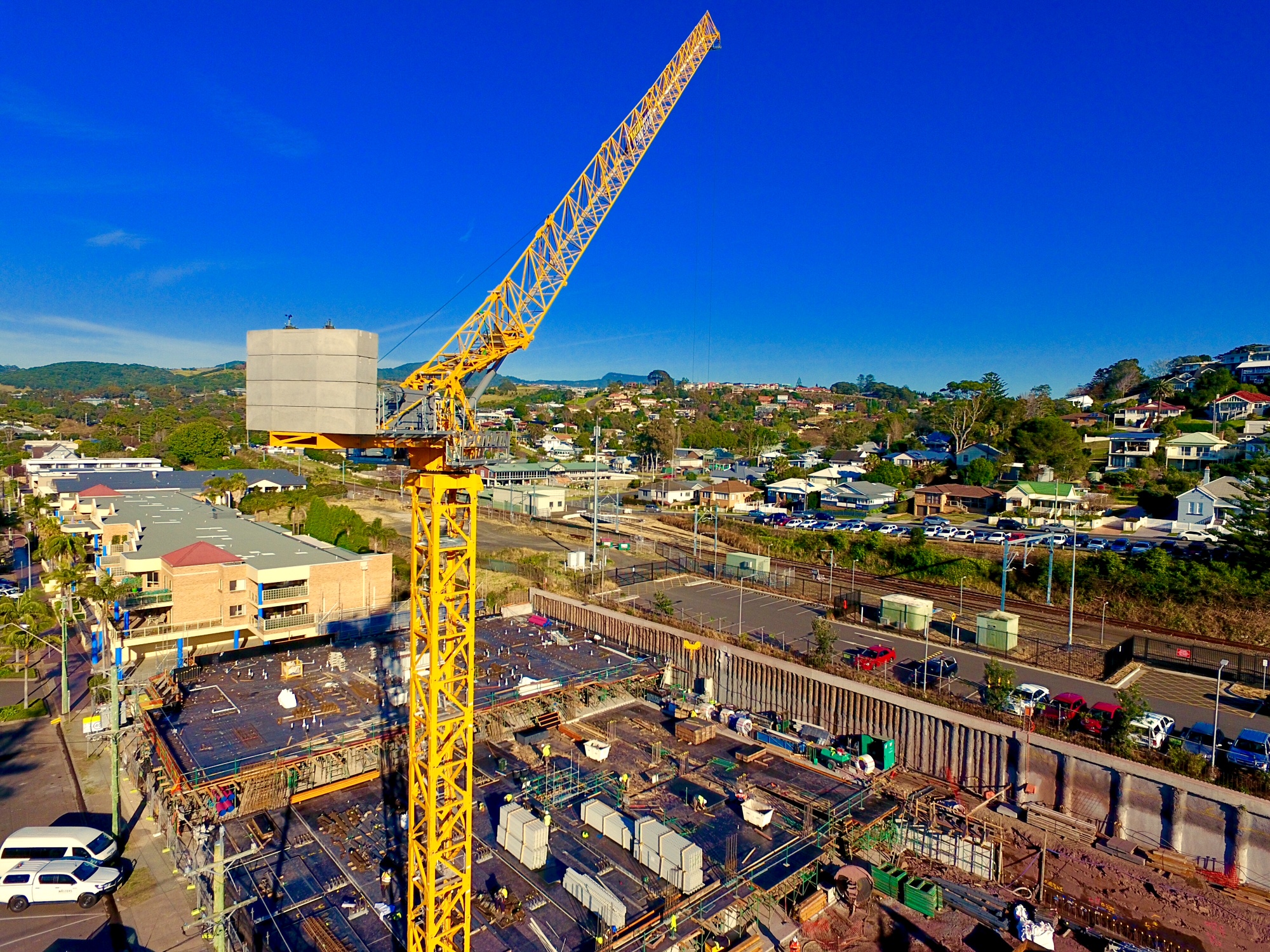

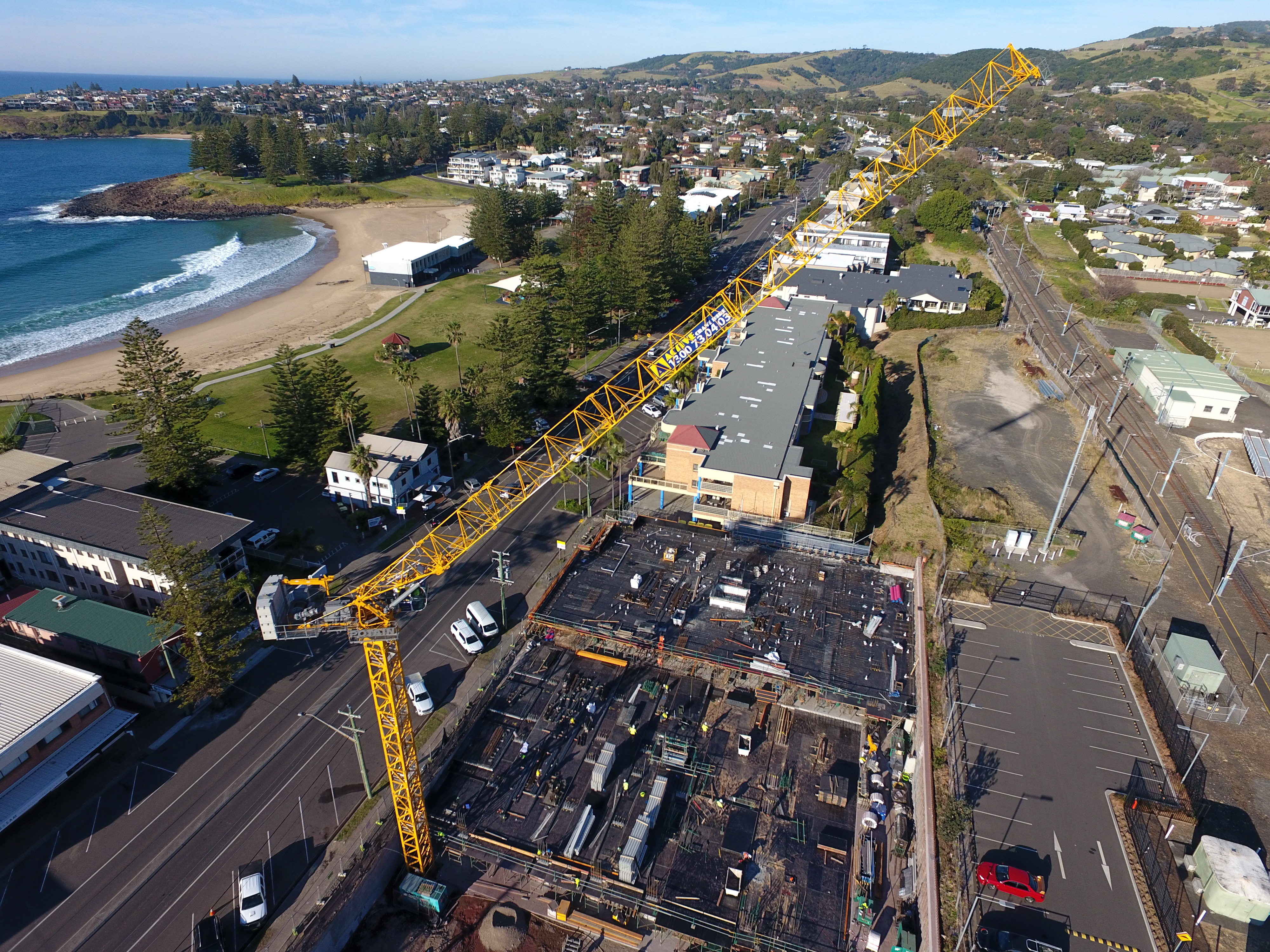

MCH 120

NEW! VVH Luffing System

The fastest installation for a luffing jib crane

• The MCH 125 erects faster and more easily than a luffing crane ever has before
• Hydraulic system components are connected at the factory for faster and easier erection
• No luffing wire rope installation needed thanks to the innovative hydraulic system
• Hoisting winch maintenance derrick and the jib wind side plate are also pre-installed
• Unique wind-sail configuration pre-installed at the factory with no need to adapt onsite for any jib length

Ideal for the most constrained jobsites

• Jib can be raised up to near vertical position: 87° angle luffing capacity
• Very short 7 m Counter jib with simple fixed counterweight installation
• Very short out-of-service weathervaning radius of 13 5 m is ideal for congested job sites
• Cab can be installed either on the right or the left side of the crane allowing the crane to position close to a building

LVF: Frequency Variation Lifting mechanisms with 2 hoisting winch options > 40 LVF 20 / 60 LVF 20

LIFTING HOIST PERFORMANCE 40 LVF 20 60 LVF 20

Max hoisting speed 81 m/min with 2 t 100 m/min with 2 t

Drum spooling capacity 456 m 533 m

RVF Optima + Slewing mechanism with speeds up to 0 8 rpm

Best return on investment

• Most adaptable luffing jib crane for congested urban job sites
• Time saving for erecting and dismantling the crane
• Optimized transport for easy and cost-effective logistics
• Standard 1 6 m or 2 m L-mast systems for fleet optimization

Most optimized transport available

• Four containers or four trucks needed for the complete upper slewing crane part
• Compact dimensions of the counter-jib and jib foot also maximize transportability and reduce costs

"
