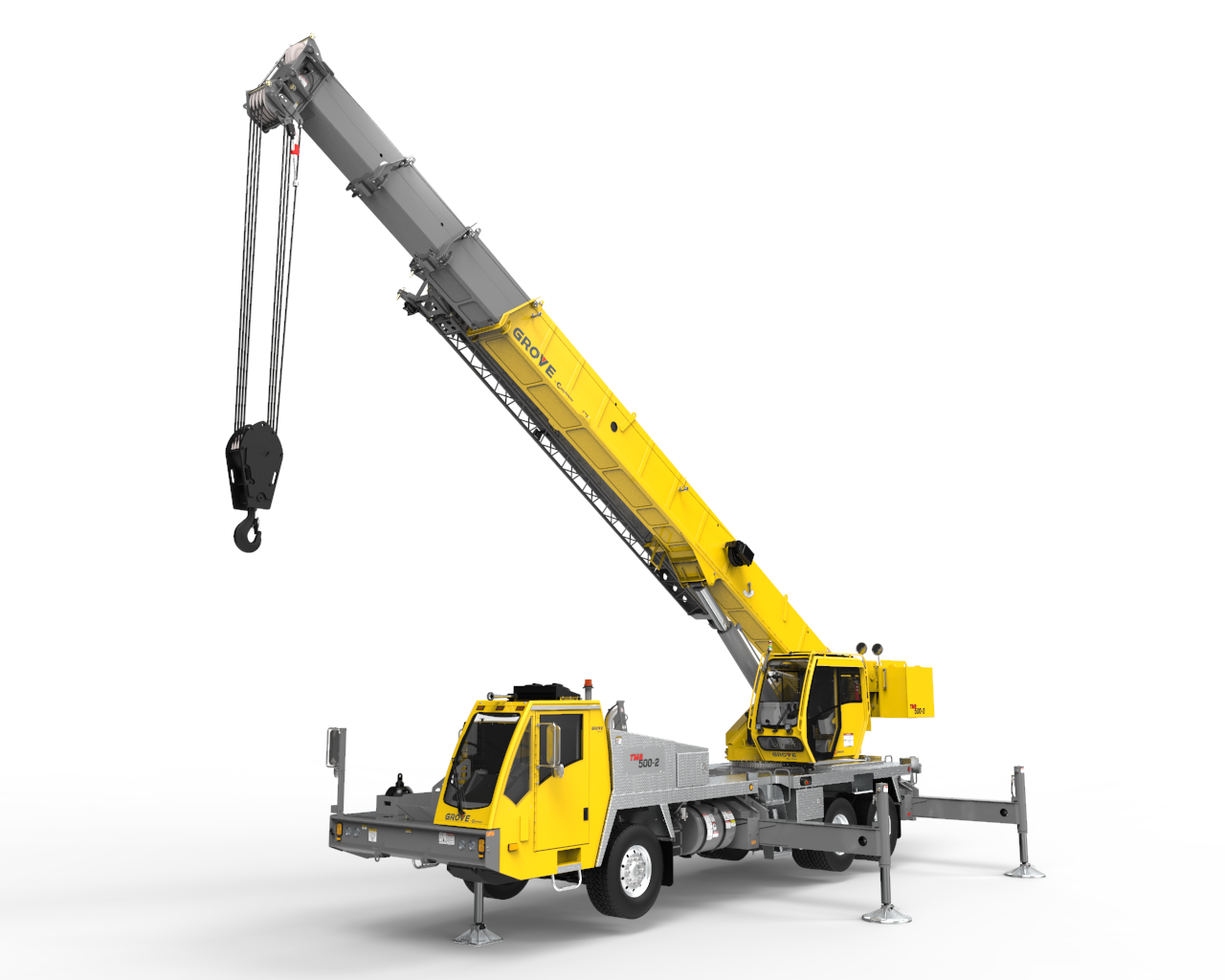

TMS500-2 - 95ft Boom

Lighter G.V.W. without sacrifice in performance.
With a lighter gross vehicle weight than its predecessor the TMS500-2 is a lightweight truck crane that features quick set-up and versatile taxi crane capabilities. For added efficiency its strong permissible line pull means less parts of line are needed.

GROVE | Truck-Mounted Cranes

TMS500-2 - 95ft Boom

  • Max capacity 40USt 36.3t
  • Total gross vehicle weight 55944lbs 25376kg
  • Main boom length 29ft - 95ft 8.75m - 29m
  • Max tip height 128.2ft 39.1m
TMS500-2-95-silhouette-transparent.png Open gallery

Specifications

  • Features

    Two four-section boom options for flexibility

    • 8 8 m - 29 0 m (29 ft - 95 ft) four-section synchronized full‑power boom
    • 9 8 m - 31 0 m (32 ft - 102 ft) four-section synchronized full‑power boom

    Optional extension

    • 7 9 m - 13 7m (26 ft - 45 ft) telescoping swingaway lattice extension with manual offsets at 0° 15° and 30°
    • Maximum tip height: 39 1 m (128.2 ft) with 29 m (95 ft) boom
    • Maximum tip height: 42 0 m (134.8 ft) with 31 m (102 ft) boom
