GMK6400-1

Non current product

THE STRONGEST HEAVY DUTY 6 AXLE CRANE

The GMK6400-1 is the strongest heavy-duty 6 axle crane on the market with a self-rigging MegaWingLift™ (rigging time < 20 min). Able to take on jobs that would usually require a seven- or eight-axle model, this outstanding 400 t all-terrain crane features an improved hydraulic system with faster flow to provide quicker operating speeds and even smoother movements. As an upgrade to the GMK6400, its implementation of Manitowoc’s CCS ensures that performance is optimized and operation can be boosted to a whole new level. Furthermore, with the addition of MAXbase™ variable outrigger positioning, capacities on the main boom are increased.

Features

  • GROVE® CONNECT™

    GROVE CONNECT IMAGE

    Our cranes become a connected and sustainable lifting solution.

    GROVE® CONNECT™

  • MEGATRAK®


    All wheels with independent hydropneumatic suspension and hydraulic lockout.

    Learn more

  • MAXbase™

    Grove MAXbase™

    Grove MAXbase™ allows asymmetrical outrigger positions

    MAXbase™
GROVE | All-Terrain Cranes

GMK6400-1

  • Nominal capacity 450USt 400t
  • Total gross vehicle weight 158730lbs 72000kg
  • Main boom length 197ft 60m
  • Max tip height 448ft 136m

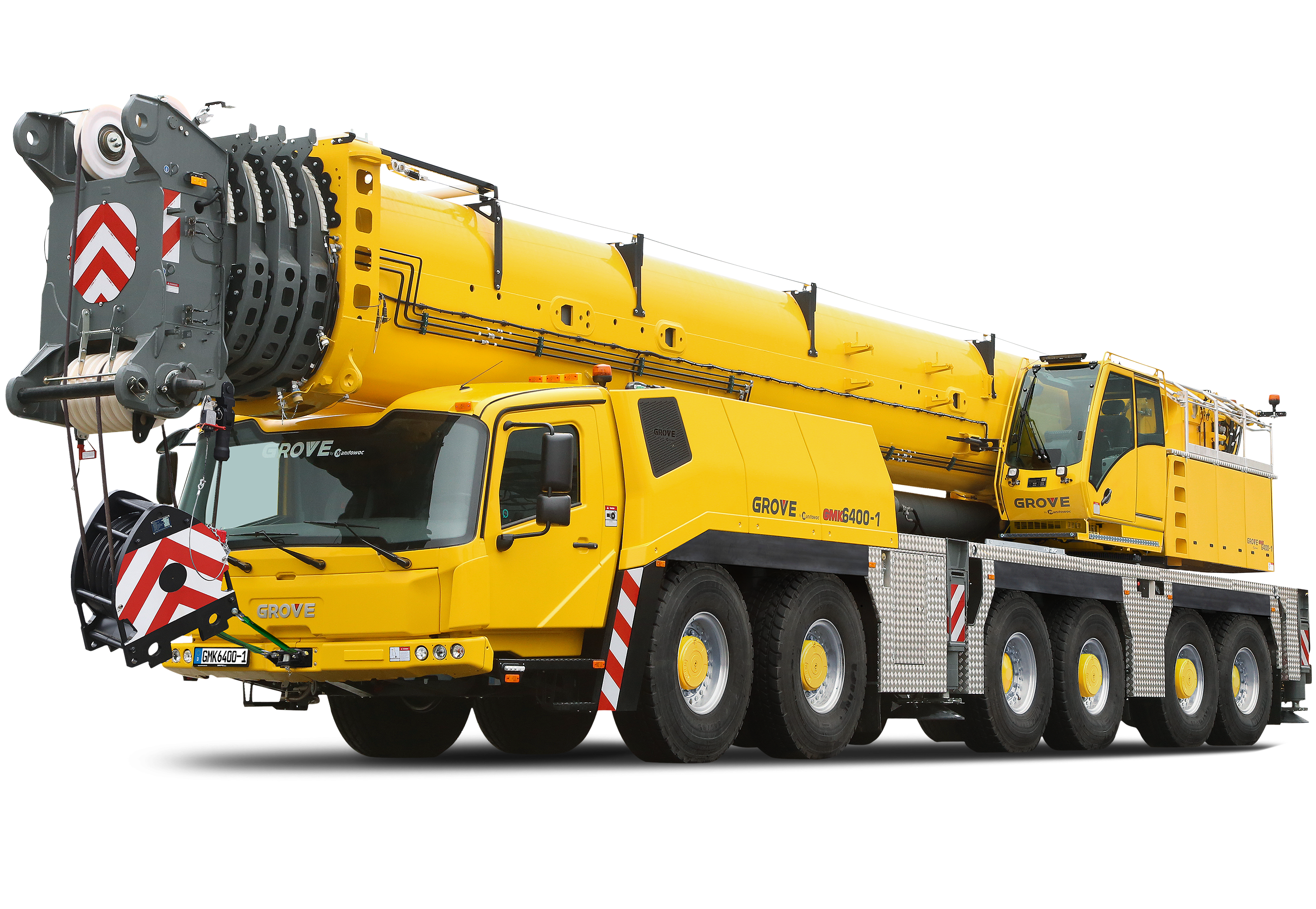

GMK6400-1-silhouette-transparent-800x553.png Open gallery

Specifications

  • BOOM
    • Main boom:  15,4 m - 60 m, 5-section
    • MEGAFORM®
    • TWIN-LOCK®
    • Luffing jib: 25 m - 79 m (optional)
    • Fixed jib: 12 m - 64 m (optional)
    • Self-rigging MegaWingLift™ (optional)
  • CARRIER
    • Drive/steer: 12x8x12 Megadrive
    • MEGATRAK®
    • Engine: Mercedes-Benz OM473LA, 430kW
    • Transmission: ZF Traxon 12
    • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
  • SUPERSTRUCTURE
    • 20° Tiltable superstructure cab
    • Eco Mode
    • CCS (Crane Control System)
  • COUNTERWEIGHT
    • Total 135 t (0 t within 12 t/axle)
  • DIMENSIONS
    • Compact dimensions: Minimum width 3 m and overall length 17,5 m
    • Tailswing: 5,86 m
    • Outrigger base: 8,7 m x 8,5 m
    • MAXbase™ (optional)
Load More
