GMK6300L-1

TOP DOG

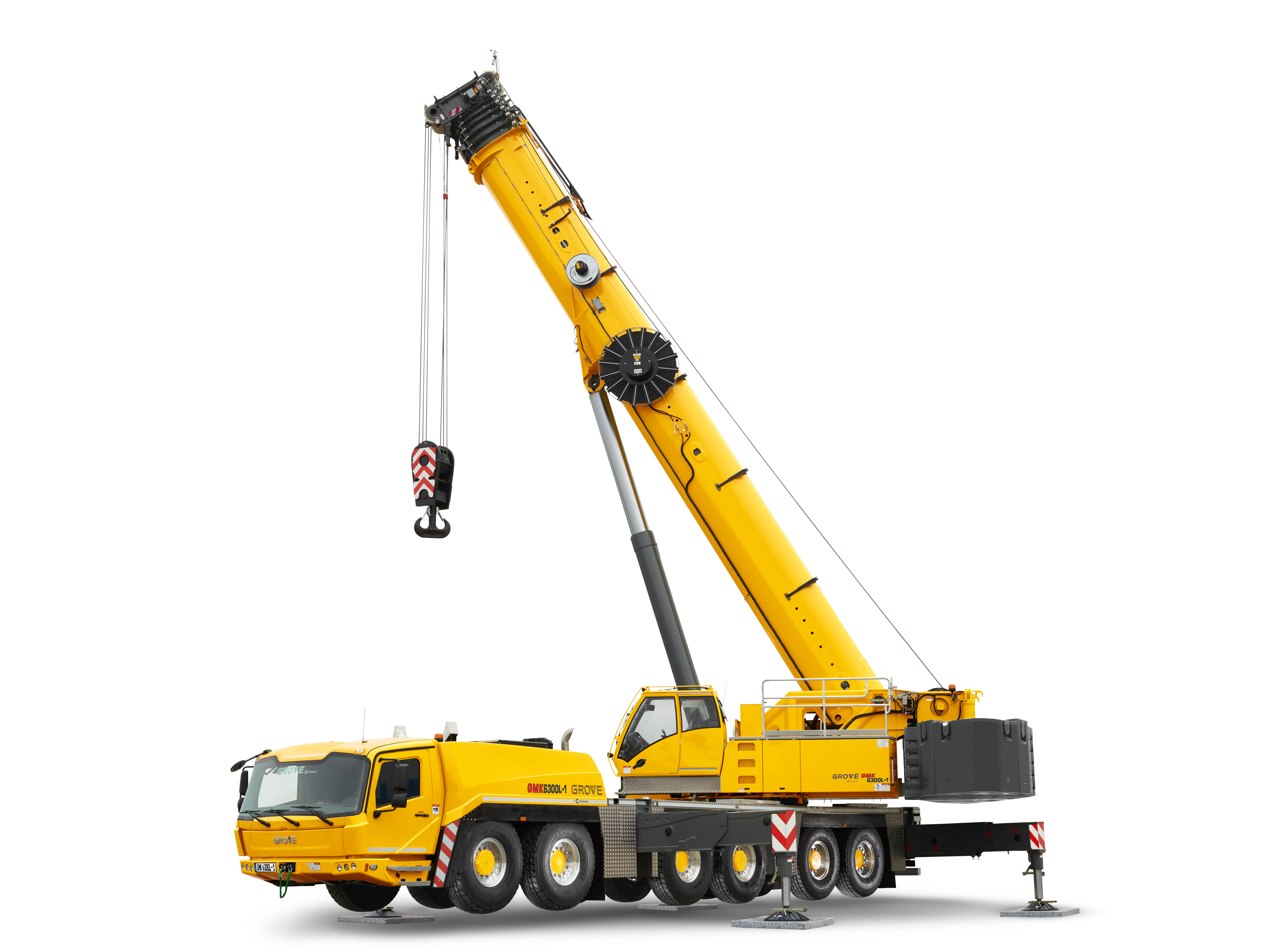

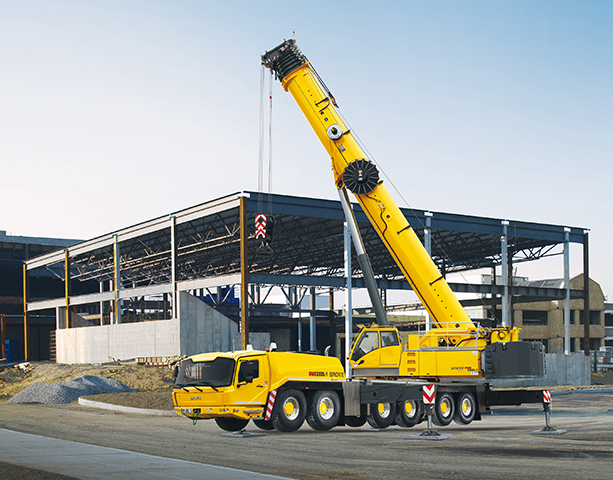

The Grove GMK6300L-1 is the definition of a 300 t mobile crane. It continues the success story of the GMK6300L and offers even better lifting capacities, especially on the long boom.
The driveline with the Mercedes engine and Allison fully automatic transmission is reliable and powerful. The GMK6300L-1 can not only be moved on the road with up to 21 t counterweight, the interchangeable slabs can be used also for GMK5180-1, GMK5200-1, GMK5250L-1, and GMK5250XL-1.

Features

  • MEGATRAK®


    All wheels with independent hydropneumatic suspension and hydraulic lockout.

    Learn more

  • CRANIMAX® CRANEbee®

    CRANEbee® is a tool for lift planning that allows you to insert your cranes into a construction site environment using realistic and interactive 3D crane models.

    CRANIMAX® CRANEbee®
GROVE | All-Terrain Cranes

GMK6300L-1

  • Nominal capacity 350USt 300t
  • Total gross vehicle weight 158733lbs 72000kg
  • Main boom length 263ft 80m
  • Max tip height 393ft 120m
GMK6300L-1_silhouette-transparent.png Open gallery

Specifications

  • BOOM
    • Main boom:  15,6 m - 80 m, 7-section
    • MEGAFORM®
    • TWIN-LOCK®
    • Swingaway jib: 12 m / 21 m  (optional)
    • Boom extension: 2 x 8 m (optional)
  • CARRIER
    • Drive/steer: 12x6x12 (optional 12x8x12)
    • MEGATRAK®
    • Engine: Mercedes-Benz OM473LA, 430kW
    • Transmission:  Allison 4500SP 6
    • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
    • Carrier cab: Grove carrier cab
  • SUPERSTRUCTURE
    • 20° Tiltable superstructure cab
    • ECOS (Crane Control System)
    • Engine: Mercedes-Benz OM936LA, 210kW
  • COUNTERWEIGHT
    • Total 92,5 t (0 t within 12 t/axle, 21,2 t within 16,5 t/axle, 54,5 t within vehicle width)
  • DIMENSIONS
    • Compact dimensions: Minimum width 3 m and overall length 17,6 m
    • Tailswing: 5,5 m
    • Outrigger base: 8,7 m x 8,5 m
Load More
