Specifications

  • Description



    1- Maximum versatilily for class-leading performance

    • New crane technology offers multiple configurations for more lifting options
    • Up to 20 possible crane configurations : 2 positions telescopic mast + 4 jib position + 3 jibs configurations
    • Height under hook up to 40 m (131 ft) for superior reach on the job site
    • High Performance Lifting and High Performance Slewing technologies

    2- Unmatched compact design

    • Ideal for easy transport and challenging job sites
    • 4 m (13.1 ft) maximum height and 12 m (39.4 ft) length for easy transport
    • Compatible with Igo transport axles
    • New ground adjustable system up to 8% slope for simple and efficient set up
    • Easy access to the new electrical panel for convenient serviceability

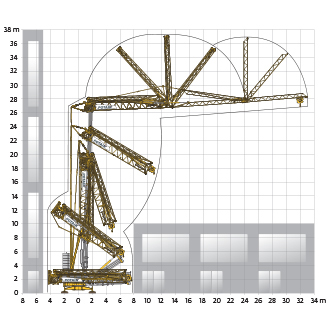

    3- Innovative movement technology enables narrow and compact erection

    • Jib unfolds to preserve space under the crane to when working next to buildings
    • Retains its compact transport dimensions during folding-unfolding

    4– Exclusive remote control and new functionalities

    • New and exclusive Drive Control functionality with 3 operating profiles (High Precision Standard and Dynamic) and Micro speed functionality
    • New remote control ergonomics
    • Full-color screen with jog dial navigation
    • Operations indicators and maintenance warning information screens

    5- Smart Set-up software for simplified crane erection

    • Exclusive Potain software to provide intuitive user interface
    • Step-by-step directions to fold and unfold the crane in a very simple and secured way
