GMK4080L NEW

The Game Changer.

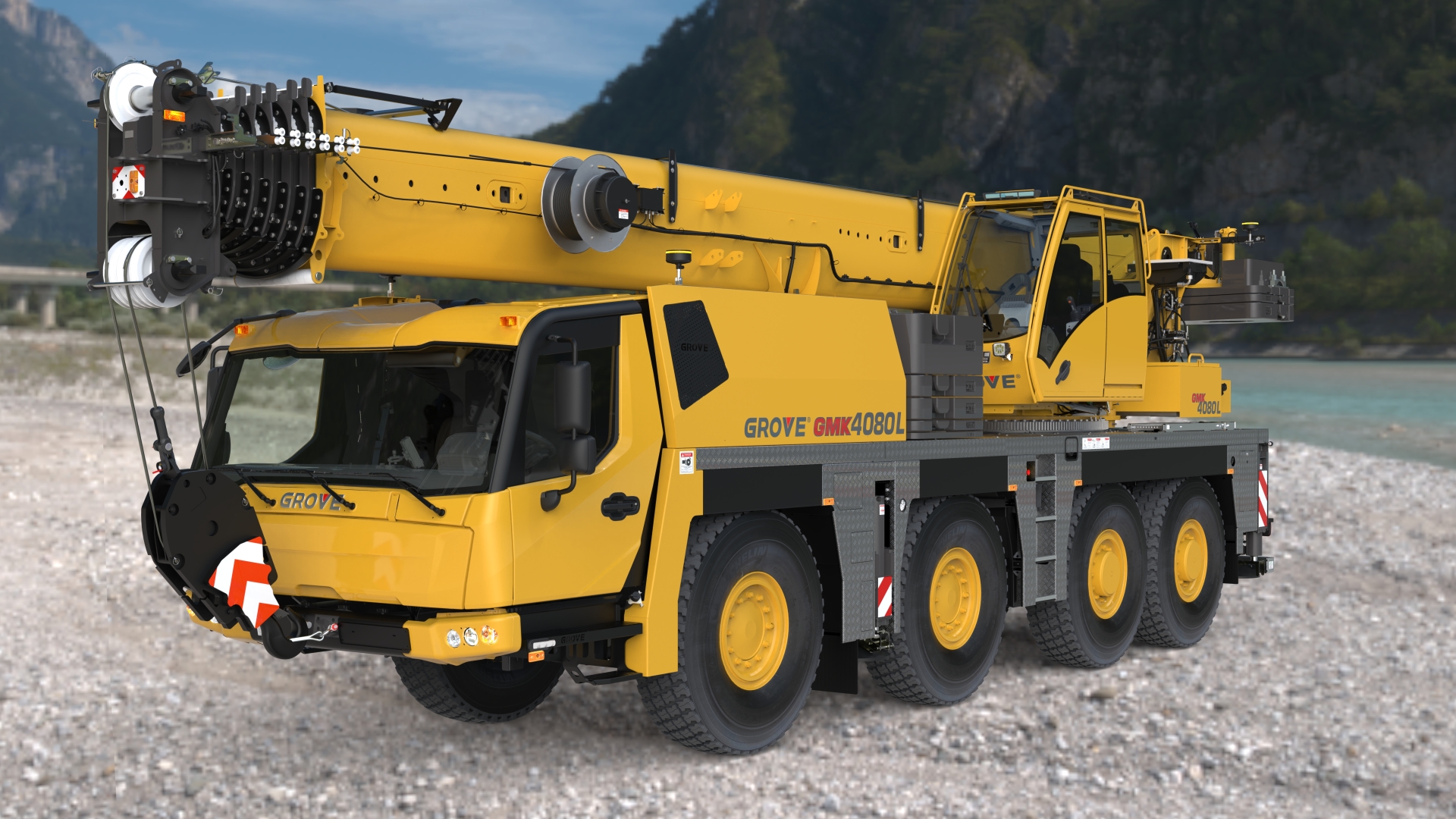

The GMK4080L is an outstanding four-axle taxi crane that, with its 60-meter-long boom, offers both the longest boom and the lowest gross vehicle weight in its class. Within 10 t per axle, the crane can carry 5.2 t counterweight and even 13.3 t counterweight with 12 t axle load. The GMK4080L can also carry its full 19 t counterweight with less than 16.5 t axle load. This flexibility makes it the ultimate taxi crane. In addition, the GMK4080L impresses with strong load charts, both with full counterweight and taxi counterweight.

Features

  • New Grove carrier cab

  • GROVE® CONNECT™

    GROVE CONNECT IMAGE

    Our cranes become a connected and sustainable lifting solution.

  • MEGATRAK®


    All wheels with independent hydropneumatic suspension and hydraulic lockout.

Specifications

  • BOOM
    • Main boom:  11,3m - 60m, 7-section
    • MEGAFORM®
    • TWIN-LOCK®
    • Bifold swingaway jib: 8,7m /15m (optional)
  • CARRIER
    • Drive/steer: 8x4x8 (optional 8x6x8)
    • MEGATRAK®
    • Engine: Mercedes-Benz OM470LA, 300kW
    • Transmission: Mercedes G  230 – 12
    • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional Tier 3 (non-road))
    • Carrier cab: Latest generation of Grove carrier cabs
  • SUPERSTRUCTURE
    • 20° Tiltable superstructure cab
    • Eco Mode
    • CCS (Crane Control System)
  • COUNTERWEIGHT
    • Total 19,1 t (13,3 t within 12 t/axle, 19,1 t within 16,5 t/axle)
  • DIMENSIONS
    • Compact dimensions: Minimum width 2,55 m and overall length 12,82 m
    • Tailswing: 3,75 m
    • Outrigger base: 6,6 m x 6,2 m
    • MAXbase (optional)
