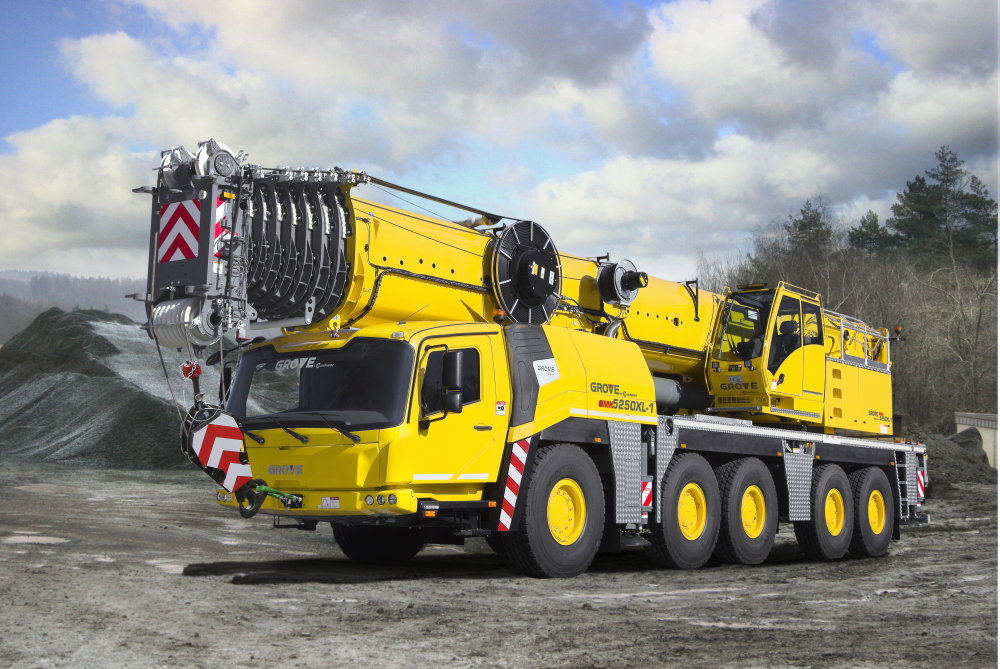

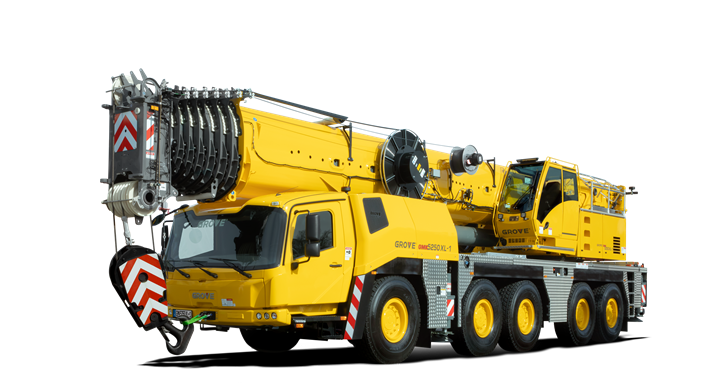

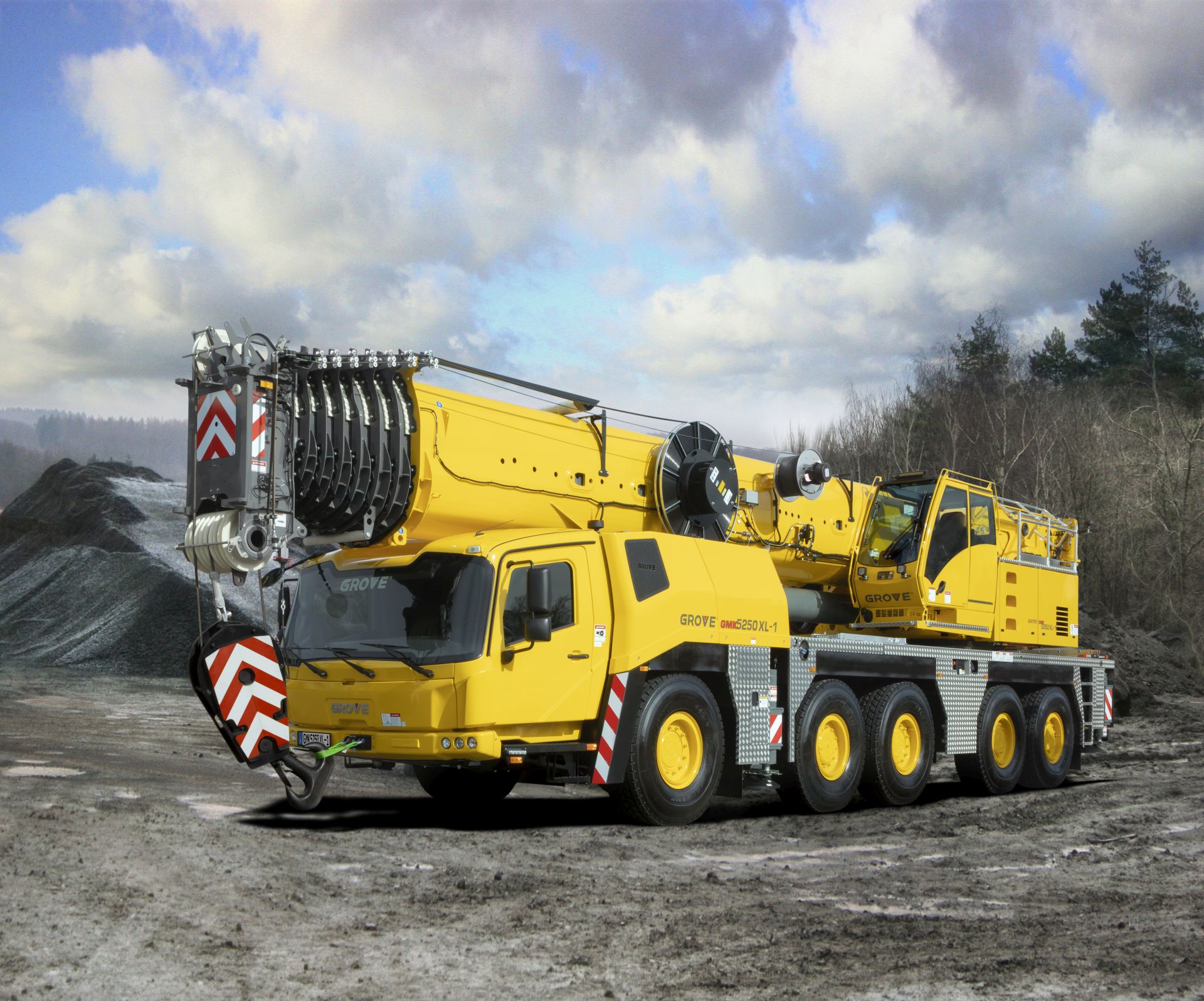

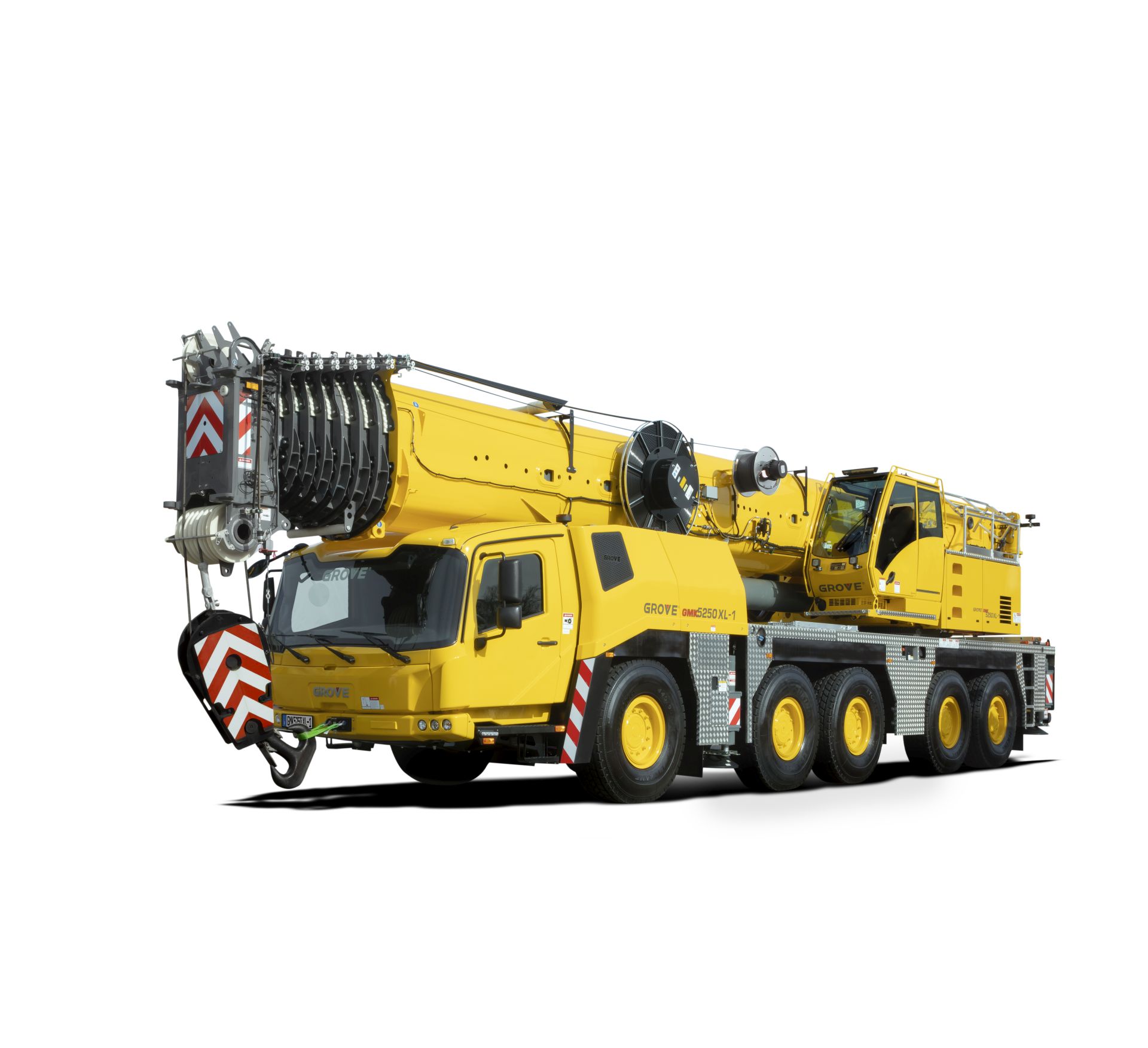

GMK5250XL-1

THE LONGEST BOOM ON 5 AXLES

With the longest boom and high capacities combined with a small footprint and excellent maneuverability, the GMK5250XL-1 pushes boundaries. The Grove single-engine design with the latest emission levels reduces the operating costs due to 30% lower diesel consumption compared to previous-generation models.

Features

  • GROVE® CONNECT™

    GROVE CONNECT IMAGE

    Our cranes become a connected and sustainable lifting solution.

    GROVE® CONNECT™

  • MEGATRAK®


    All wheels with independent hydropneumatic suspension and hydraulic lockout.

    Learn more

  • VIAB

    VIAB turbo retarder clutch option

    VIAB enables wear-free starting and braking

    VIAB

  • MAXbase™

    Grove MAXbase™

    Grove MAXbase™ allows asymmetrical outrigger positions

    MAXbase™

  • CRANIMAX® CRANEbee®

    CRANEbee® is a tool for lift planning that allows you to insert your cranes into a construction site environment using realistic and interactive 3D crane models.

    CRANIMAX® CRANEbee®
GROVE | All-Terrain Cranes

GMK5250XL-1

  • Nominal capacity 300USt 250t
  • Total gross vehicle weight 130000lbs 60000kg
  • Main boom length 257.5ft 78.5m
  • Max tip height 358ft 109m
Manitowoc Open gallery

Specifications

  • BOOM
    • Main boom:  13,4 m - 78,5 m, 8-section
    • MEGAFORM®
    • TWIN-LOCK®
    • Swingaway jib: 11,2 m / 17,8 m  (optional)
    • Boom extension: 1 x 8 m (optional)
    • Jib extension: 1 x 8 m (optional)
  • CARRIER
    • Drive/steer: 10x6x10 (optional 10x8x10)
    • MEGATRAK®
    • Engine:  Mercedes-Benz OM471LA, 390kW
    • Transmission:  Mercedes G 280-16
    • VIAB turbo retarder clutch (optional)
    • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
    • Carrier cab: Latest generation of Grove carrier cabs
  • SUPERSTRUCTURE
    • 20° Tiltable superstructure cab
    • Eco Mode
    • CCS (Crane Control System)
  • COUNTERWEIGHT
    • Total 80 t (0 t within 12 t/axle, 21,5 t within 16,5 t/axle, 50 t within vehicle width)
  • DIMENSIONS
    • Compact dimensions: Minimum width 2,75 m and overall length 15,4 m
    • Tailswing: 5,2 m
    • Outrigger base: 9 m x 7,8 m
    • MAXbase (optional)
