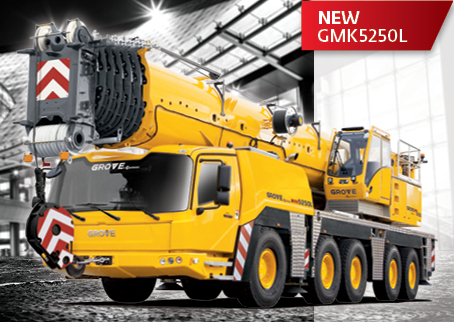

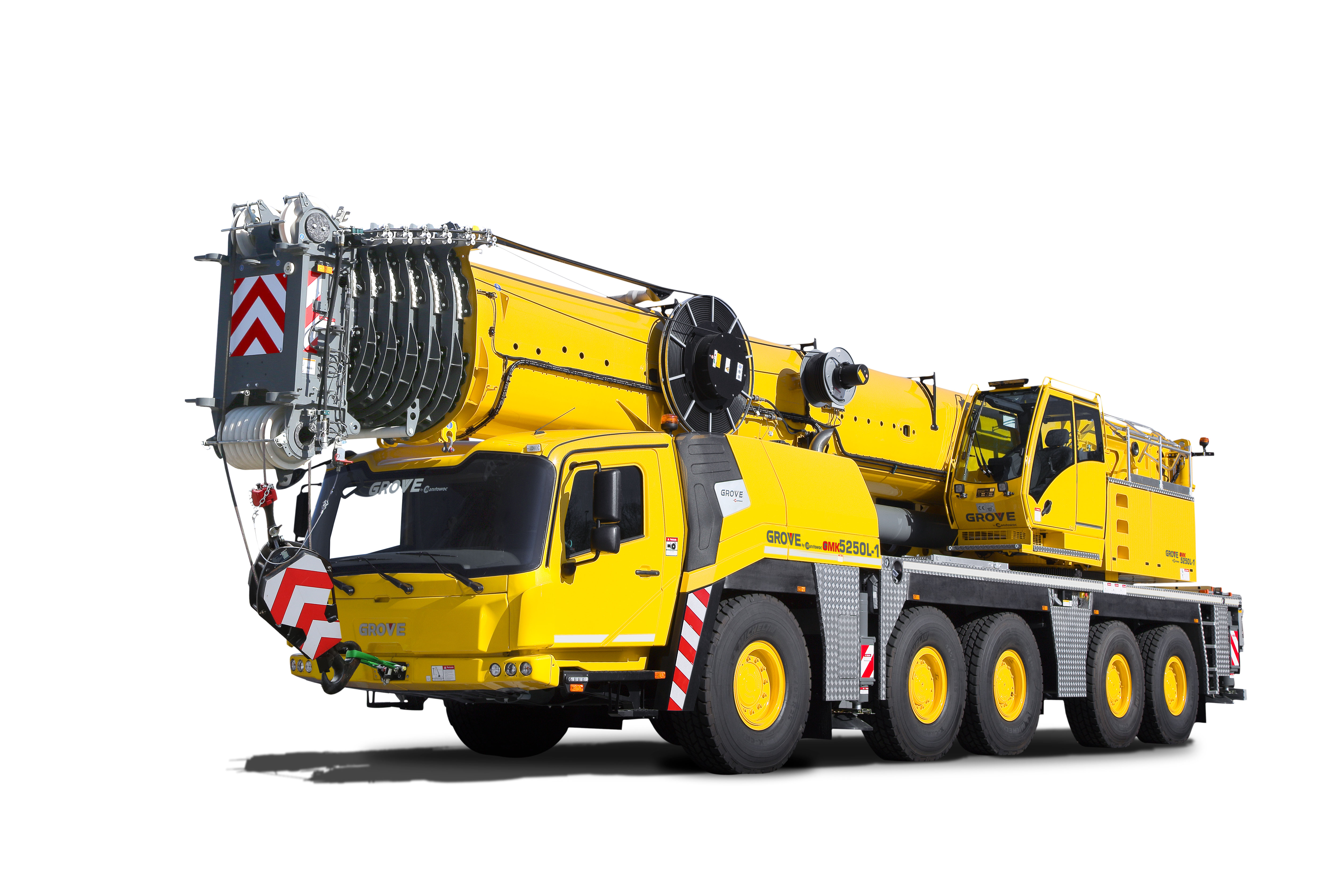

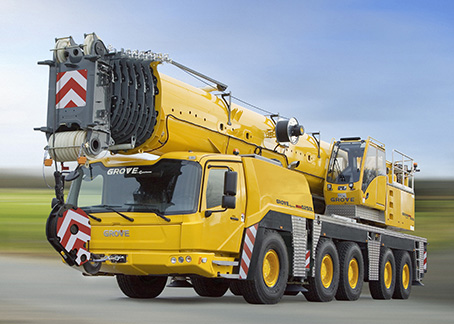

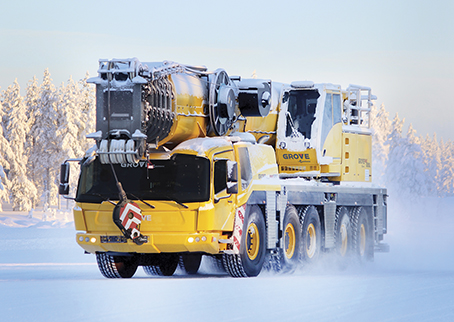

GMK5250L-1

Five-axle supremacy.

The most powerful and versatile five-axle crane in the market the new GMK5250L-1 lets you dominate the competition with performance capabilities that include highest-rated capacity best load chart in its class best maneuverability quickest set-up time and most operator comfort and convenience in its class.

Specifications

  • BOOM
    • Main boom:  13,3 m - 70 m, 7-section
    • MEGAFORM®
    • TWIN-LOCK®
    • 12,5/21,3 m Swingaway jib and 2 x 8 m boom/jib extension
  • CARRIER
    • 10x6x10 (optional 10x8x10)
    • MEGATRAK®
    • Engine:  Mercedes-Benz OM471LA, 390kW
    • Transmission:  Mercedes G 280-16
    • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
    • Carrier cab: Latest generation of Grove carrier cabs
  • SUPERSTRUCTURE
    • 20° Tiltable superstructure cab
    • Eco Mode
    • CCS (Crane Control System)
  • COUNTERWEIGHT
    • Total 80 t (0 t within 12 t/axle, 21,5 t within 16.5 t/axle, 50 t within vehicle width)
  • DIMENSIONS
    • Compact dimensions: Minimum width 2,75 m and overall length 15,3 m
    • Tailswing: 5,2 m
    • Outrigger base: 9 x 7,8 m
    • MAXbase
